Technical Data Sheet

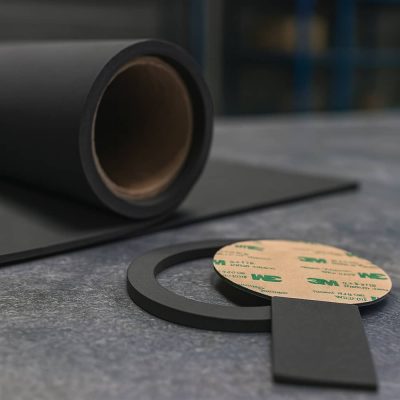

3M ISOLOSS LS polyurethane foam

Technical foam designed for absorption, support and cushioning

3M ISOLOSS LS polyurethane foam is a high-performance polyurethane foam designed to offer excellent durability, low permanent deformation and effective shock and vibration absorption. Thanks to a wide range of densities and thicknesses, it can be adapted to a wide range of industrial requirements: damping, cushioning, sealing or mechanical protection.

Manufactured by Aearo Technologies, a 3M company, this foam is recognised for its ability to maintain mechanical and acoustic performance over time, even in severe conditions.

Contact ADDEV
Polyurethane foam-3M

Technical characteristics of 3M ISOLOSS LS polyurethane foam

  • Density: 10 to 25 lb/ft³.
  • Thickness range: from 0.03" (0.8 mm) to 0.50" (12.7 mm)
  • Low compression set (reduced permanent deformation)
  • Very wide operating temperature range
  • High resilience and excellent rebound
  • Packaged in rolls of up to 1350 ft²
  • Compatible with 3M adhesives (300MP, 200MP, LSE series...)

ISOLOSS™ LS polyurethane foam highlights.

  • High durability The new, more compact design of the new product: it retains its shape and mechanical properties over time, even after numerous compressions.

  • Effective shock absorption ideal for vibration-sensitive environments.

  • Versatility Available in a range of densities and thicknesses to suit every application.

  • Compliance The new, easy-to-install, easy-to-maintain design: fits complex shapes to provide effective support or wedging.

  • Resistance to extreme environments Resistance to flames, chemicals and severe temperatures.

Typical applications for 3M™ ISOLOSS™ LS foam

Designed for design engineers, ISOLOSS™ LS foam is widely used in the following sectors:

Electronics & Electrical engineering

  • Anti-vibration pads for sensitive equipment
  • Protection of boards and components
  • Sealing on housings or covers

Industry & Energy

  • Shimming of mechanical parts
  • Sealing gasket for enclosures or cabinets
  • Thermal or sound insulation

Transport & Automotive

  • Absorption of vibrations in instrument panels
  • Door or interior trim
  • Engine gasketing or on-board electronics

Range available: ISOLOSS™ LS foam in different formats

3M ISOLOSS LS polyurethane foam is referenced by code, according to density and thickness. Here are some examples available:

  • LS-1006LM (10 lb/ft³, 0.06") - very flexible

  • LS-1512 (15 lb/ft³, 0.12") - support & cushioning

  • LS-2025 (20 lb/ft³, 0.25") - reinforced absorption

  • LS-2503 (25 lb/ft³, 0.03") - high density fine protection

👉 Need advice on choosing the right format or getting a quote? Our experts are here to help.

Why choose ADDEV Materials for your ISOLOSS™ LS foam?

As a specialist distributor of technical materials, ADDEV Materials can help you with :

  • Stock available for fast delivery

  • Customised repackaging (rolls, cut formats, etc.)

  • A technical team to help you integrate foam into your solution

  • Perfect knowledge of 3M™ references and adhesive compatibilities

We guarantee a seamless experience, focused on product performance and industrial benefits.

FAQ - 3M ISOLOSS™ LS foam

LM = Low Modulus (soft), HM = High Modulus (rigid). The standard version is intermediate.

Yes, it is designed to work with 3M technical adhesives: 300MP, 300LSE, 200MP...

Yes, some references are resistant to humidity, UV and major temperature variations.



Several grades are UL 94 HBF (flame retardant) listed, allowing them to be used in regulated environments.



Thanks to its low compression set and thermal stability, it retains its properties for many years.



Yes, ADDEV Materials can repackage foam into rolls, pre-cut formats or individual pieces.
